ECHOMAP Plus 92sv

Discontinued

Part Number 010-01900-01

ONLINE STORE

Fitur
Spesifikasi
Isi Dalam Kotak
Perbarui
Aksesori
Cocok untuk mesin

The combo with connections

Bright, sunlight-readable 9 inch keyed-assist touchscreen combo
Includes GT-52 transducer for Garmin high wide CHIRP traditional sonar plus CHIRP ClearVü™ and CHIRP SideVü™ scanning sonars and compatible with Panoptix™ all-seeing sonar (sold separately)
Preloaded worldwide basemap; compatible with BlueChart® g3 and premium BlueChart® g3 Vision coastal charts with integrated Navionics® data and Auto Guidance1 technology
Built-in Quickdraw Contours mapping software instantly creates personalised fishing maps on-screen with 1 foot contours as you fish
Use built-in Wi-Fi® to pair with the free ActiveCaptain™ app for access to OneChart™, smart notifications2, Garmin Quickdraw™ Community data and more

At a Glance

This bright, sunlight-readable 9” combo offers the convenience of a keyed-assist touchscreen. It comes with a GT52 transducer that encompasses Garmin high wide CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars, and it’s also compatible with Panoptix all-seeing sonar. It comes with a preloaded worldwide basemap and is compatible with our BlueChart g3 and premium BlueChart g3 Vision coastal charts with integrated Navionics data and Auto Guidance1 technology. Plus, Quickdraw Contours mapping software to instantly create personalised fishing maps on-screen with 1 foot contours as you fish. It also has built-in Wi-Fi to pair with the free ActiveCaptain app for access to OneChart, which allows you to purchase and download new charts. ActiveCaptain also gives you access to smart notifications2, the ActiveCaptain community for marina and other points of interest details, Quickdraw Community data and more. Features quick-release bail mount to make it easy to remove and take with you. Transom and trolling motor mounts included.

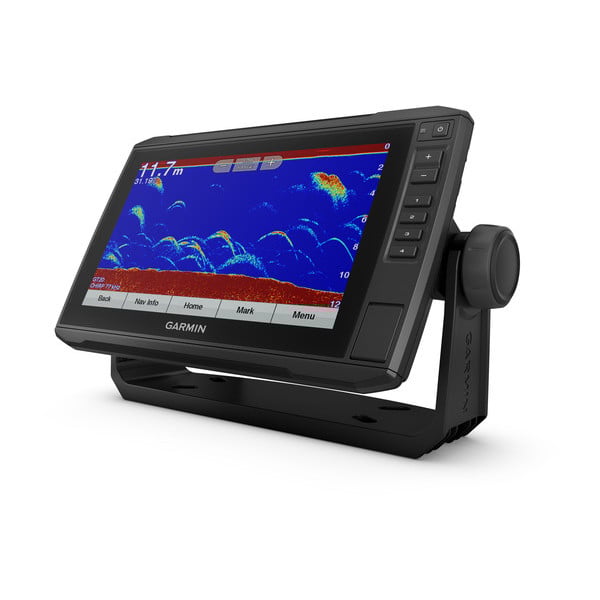

The Garmin CHIRP difference

The built-in sonar capabilities of ECHOMAP Plus 92sv include our CHIRP traditional sonar, one of the most sophisticated sonar technologies available for the fishing and boating public. CHIRP traditional sonar provides amazingly clear target separation and definition, because it puts even more energy onto the target than traditional sonar. It also provides traditional sonar support for Minn Kota® and MotorGuide® trolling motors with integrated transducers.

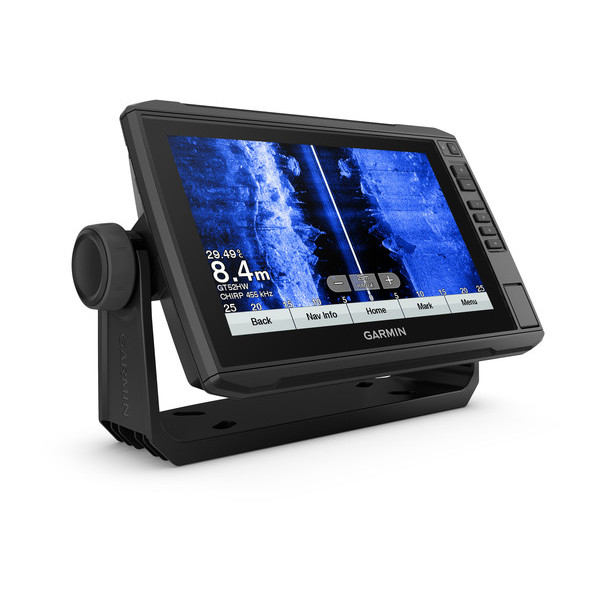

Clear scanning sonar images

Garmin CHIRP ClearVü scanning sonar gives you a nearly photographic image of what’s below your boat, and Garmin CHIRP SideVü shows you in incredible detail what lies off to the sides of your boat. You clearly see structure, submerged objects and fish. Garmin CHIRP traditional sonar, ClearVü and SideVü scanning sonar are combined into 1 transducer.

!#172346%%alt%%#!

Quickdraw Contours to create your own maps

Instantly create personalised fishing maps on-screen with 1 foot contours, then tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.

Get connected with ActiveCaptain app

Our free all-in-one ActiveCaptain app allows you to manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your chartplotter, charts, maps and the community. Use the combo’s built-in Wi-Fi to pair with the free ActiveCaptain app for access to OneChart, which allows you to update or purchase and download new charts. ActiveCaptain also gives you access to smart notifications2, the ActiveCaptain community for marina and other points of interest details, Quickdraw Community data and more.

SailAssist features

SailAssist features include laylines, enhanced wind rose and heading and course-over-ground lines. See true and apparent wind angle and speed as well as set and drift and a glance. To help you gain a wind-maximising competitive edge, a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer.

Upgrade to our best maps on the water

Step up to LakeVü g3, LakeVü g3 Ultra, BlueChart g3 or BlueChart g3 Vision, all with integrated Navionics data, Auto Guidance1 technology and other great features. A single microSD™ card slot provides expandable memory for accessory map purchases. Or purchase maps with OneChart through the ActiveCaptain app and automatically sync with your compatible chartplotter, eliminating the need for an SD card.

See fish swimming in real time

Add optional Panoptix all-seeing sonar transducer and see all around your boat and below it — in real time, even while your boat is stationary. See your lure as it sinks, relative to structure in the water. Watch the movement of fish — and their reactions to your bait — up to 100 feet away or below the boat.

NMEA 2000® network support

Provides NMEA 2000 support for engine data, sensors, FUSION-LINK™ audio system, autopilots and more.

Take your ECHOMAP Plus with you

When you’re off the water, it’s easy to keep your ECHOMAP Plus combo safe and secure. You don’t have to mess with plugging and unplugging wires from the unit because the cords plug directly into the mount. This allows you to quickly install and remove your ECHOMAP Plus from power and the mount.

1 Auto Guidance is for planning purposes only and does not replace safe navigation operations
2 This model does not support 3-D mapping views on BlueChart g3 Vision

Wi-Fi® is a registered trademark of the Wi-Fi Alliance.

Terkait

General
PHYSICAL DIMENSIONS	28.2 x 16.4 x 6.0 cm
DISPLAY SIZE	19.9 x 11.3 cm; 22.9 cm diagonal (9")
DISPLAY RESOLUTION	400 x 800 pixels
DISPLAY TYPE	WVGA display
WEIGHT	1.0 kg
WATER RATING	IPX7
POWER CONSUMPTION	18W
ANTENNA	Internal or external over NMEA 2000
MOUNTING OPTIONS	Bail or flush
RECEIVER	5 Hz
GARMIN MARINE NETWORK™ PORTS	1 Panoptix™ port
TRANSMIT POWER	500 W (RMS) / 4,000 W (peak to peak)

Maps & memory
PRELOADED MAPS	None
ACCEPTS DATA CARDS	1 microSD™ card; 32 GB maximum card size
WAYPOINTS	5,000
TRACK LOG	50,000 points; 50 saved tracks
ROUTES	100

Outdoor recreation features
TIDE TABLES

Chartplotter features
GARMIN SONAR COMPATIBLE
SUPPORTS AIS (TRACKS TARGET SHIPS POSITION)
SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO)
SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS

Sonar features & specifications
DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE
DUAL-BEAM (77/200 KHZ) SONAR CAPABLE
CHIRP SONAR TECHNOLOGY	Yes (Built-in)
CLEARVÜ	Yes with CHIRP (built-in)
SIDEVÜ	Yes with CHIRP
MAXIMUM DEPTH	2,300 ft @ 77 kHz, freshwater 1,100 ft @ 77 kHz, saltwater (depth capacity is dependent on water bottom type and other water conditions)
BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP)
WATER TEMPERATURE LOG AND GRAPH
SONAR RECORDING
SONAR HISTORY REWIND

Connections
NMEA 2000® COMPATIBLE
TRANSDUCER PIN NUMBERS	12
NMEA 0183 INPUT PORTS	1
NMEA 0183 OUTPUT PORTS	1
VIDEO INPUT PORTS	None
VIDEO OUTPUT PORTS	None
WIRELESS CONNECTIVITY	Yes

Additional
ADDITIONAL	ECHOMAP Plus 7x/9x series GPSMAP 527/547 series GPSMAP 527xs/547xs series GPSMAP 721/741 series GPSMAP 721xs/741xs series GPSMAP 7400/7600 series GPSMAP 7400xsv/7600xsv series GPSMAP 8000 series GPSMAP 800/1000 series GPSMAP 800xs/1000xs series

ECHOMAP Plus 92sv
GT52HW-TM transducer
Power/data cable
Tilt mount with quick release cradle
Flush mount
Protective cover
Hardware
Documentation
