ECHOMAP UHD 72sv
Sumber daya dilepas

ECHOMAP UHD 72sv

Part Number 010-02337-01

ONLINE STORE

ECHOMAP UHD 72sv ECHOMAP UHD 72sv ECHOMAP UHD 72sv ECHOMAP UHD 72sv

JOIN THE CLUB. FIND MORE FISH.

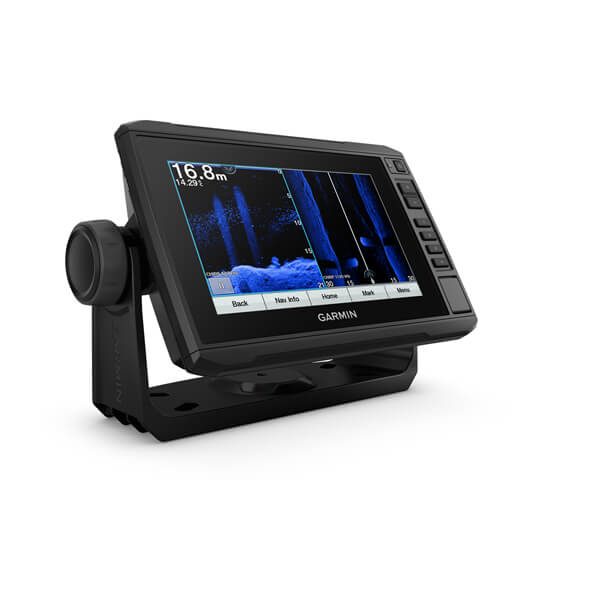

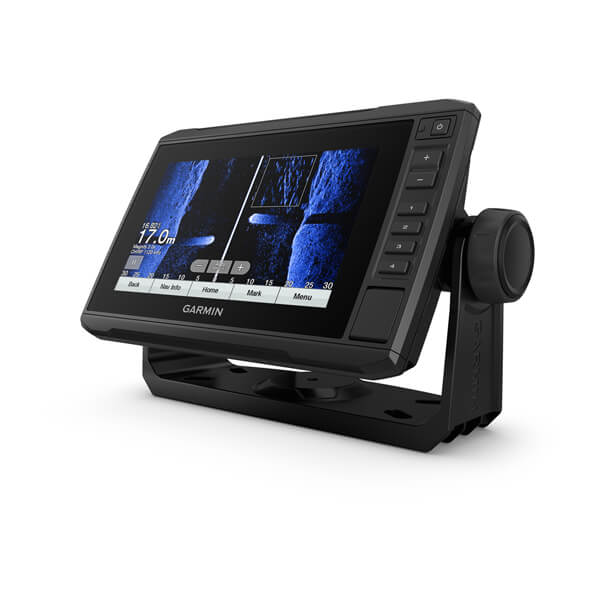

The sunlight-readable 7” touchscreen chartplotter features a quick-release bail mount, and the transducer bundle adds Ultra High-Definition scanning sonar and CHIRP traditional sonar.

See below your boat in incredible detail with optional transducer

Navigate any waters with optional charts and maps

Share data with other devices on your network (7” and 9” models only)

Manage your marine experience from nearly anywhere

Control the most powerful trolling motor available

Create your own maps on the fly and tailor them to fit your needs

SONAR SUPPORT

This chartplotter supports a variety of Garmin transducers (sold separately), including the Panoptix LiveScope™ scanning sonar system, which lets you see all around your boat in real time.

OPTIONAL TRANSDUCER BUNDLE

Select the transducer bundle to add a GT24 transducer for Ultra High-Definition ClearVü scanning sonar, which shows you a crystal-clear image below your boat. Plus, you get Garmin high wide CHIRP traditional sonar for remarkable target separation.

OPTIONAL CHARTS AND MAPS

Experience unparalleled coverage and detail with support for optional BlueChart g3 Vision coastal charts featuring integrated Garmin and Navionics® content.

QUICKDRAW CONTOURS

Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect.

NETWORK CAPABLE

If you have multiple compatible ECHOMAP UHD or ECHOMAP Ultra devices on your boat, you can share information — such as sonar, user data and charts — among them (7” and 9” models only).

NMEA 2000 AND NMEA 0183 NETWORKS

Connect to autopilots, digital switching, weather, FUSION-Link audio system, media, VHF, AIS and more from one screen.

ACTIVECAPTAIN APP

Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications1, software updates, Garmin Quickdraw™ Community data and more.

FORCE TROLLING MOTOR COMPATIBILITY

Take control of the most powerful and efficient trolling motor available², route it to waypoints, follow tracks and more from the screen of your chartplotter.

Manage Your Marine Experience Using The Free ActiveCaptain App

learn more

Powerful. Efficient. Quiet. Force Trolling Motor

learn more

¹When paired with a compatible smartphone
² In compliance with ISO standard 13342

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

General

Physical dimensions 9.8" x 5.5" x 2.0" (25 x 13.9 x 5.1 cm)
Display size 6.1" x 3.4"; 7.0" diagonal (15.5 x 8.6 cm; 17.8 cm diagonal)
Display resolution 400 x 800 pixels
Display type WVGA display
Weight 1.7 lbs.(0.77kg)
Water rating IPX7
Power consumption 15W
Antenna Internal or external over NMEA 2000
Mounting options Bail or flush
Receiver 5 Hz
Garmin Marine Network ports 1 Panoptix port

Maps & Memory

Preloaded maps
Accepts data cards 1 microSD card; 32 GB maximum card size
Waypoints 5,000
Routes 100
Track log 50,000 points; 50 saved tracks

Outdoor Recreation Features

Tide tables

Chartplotter Features

Garmin Sonar compatible
Supports AIS (tracks target ships position)
Supports DSC (displays position data from DSC-capable VHF radio)
GCV Black Box sonar support
ActiveCaptain compatible
Sailing Features

Sonar Features & Specifications

Dual-frequency (50/200 kHz) sonar capable
Dual-beam (77/200 kHz) sonar capable
Transmit power 500 W (RMS) / 4,000 W (peak to peak)
CHIRP sonar technology (Built-in)
ClearVü Yes with CHIRP (built-in)
SideVü Yes with CHIRP
Maximum depth 2,300 ft @ 77 kHz, freshwater
1,100 ft @ 77 kHz, saltwater
(depth capacity is dependent on water bottom type and other water conditions)
Bottom lock (shows return from the bottom up)
Water temperature log and graph
Sonar recording
Sonar history rewind

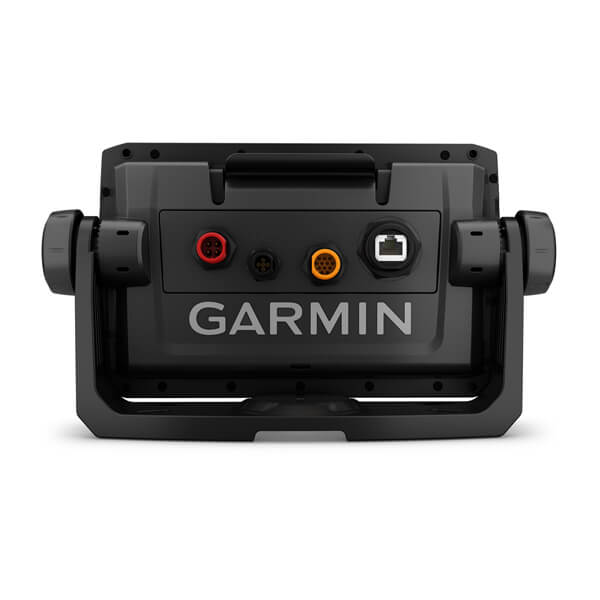

Connections

NMEA 2000 compatible
Transducer pin numbers 12
NMEA 0183 input ports

1

NMEA 0183 output ports

1

Video input ports
Video output ports
Wireless connectivity
  • ECHOMAP UHD 72sv with worldwide basemap
  • Power/data cable
  • Tilt/swivel mount with quick release cradle
  • Flush mount
  • Protective cover
  • Hardware
  • Documentation
