Garmin GT50M-THP
Sumber daya dilepas

Garmin GT50M-THP

Part Number 010-01965-11

ONLINE STORE

Garmin GT50M-THP Garmin GT50M-THP

Perfect for the shallow water fisherman who want CHIRP traditional sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar with a stainless steel stems, this pair of thru-hull mounted transducers consistently displays clear and crisp fish arches with superior target separation as well as clear pictures of objects, structure and fish that pass below and to each side of your boat.

The CHIRP ClearVü/ SideVü elements have a power rating of 500 W per element (1,500 W total) and operating frequencies of 455/800 kHz. The traditional CHIRP sonar has a power rating of 300 W and operating frequencies of mid-band CHIRP 80-160 kHz. It includes a built-in fast-response temperature sensor.  For hull deadrises less than 25 degrees.

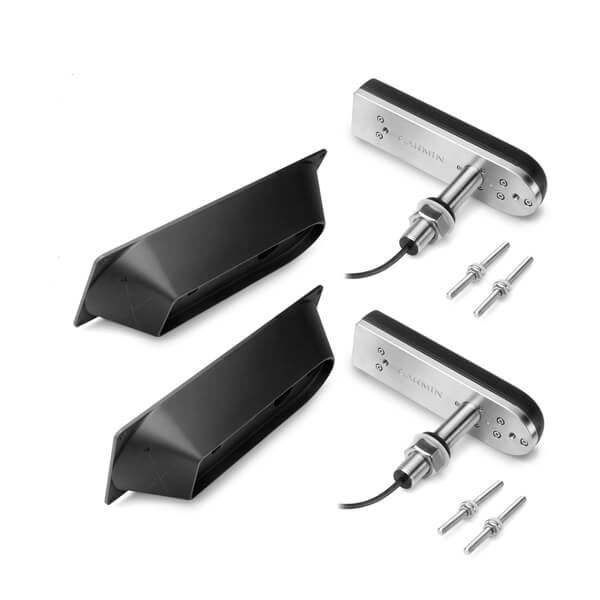

GT50M-THP includes a 12-pin port/starboard transducers with stainless steel stems, fairing blocks, Y-cable, bushings, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.



General

FREQUENCY CHIRP Mid-band (80-160 kHz); ClearVü/SideVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
POWER CHIRP Traditional 300 W; ClearVü/SideVü 500 W
BEAMWIDTH Traditional: 26°-15°
ClearVü/SideVü: 1.1°x53° @ 455 kHz and 0.7°x30° @ 800 kHz
MAXIMUM DEPTH Traditional: 1,500 ft.; ClearVü: 750 ft.; SideVü: 500 ft.
DEPTH/SPEED/TEMPERATURE Depth and Temperature
NUMBER OF PINS 12-pin
CABLE LENGTH 5 ft. + 30 ft. y-extension cable
SUPPORTED DEADRISE/TRANSOM ANGLES Up to 25° deadrise
