Discontinued

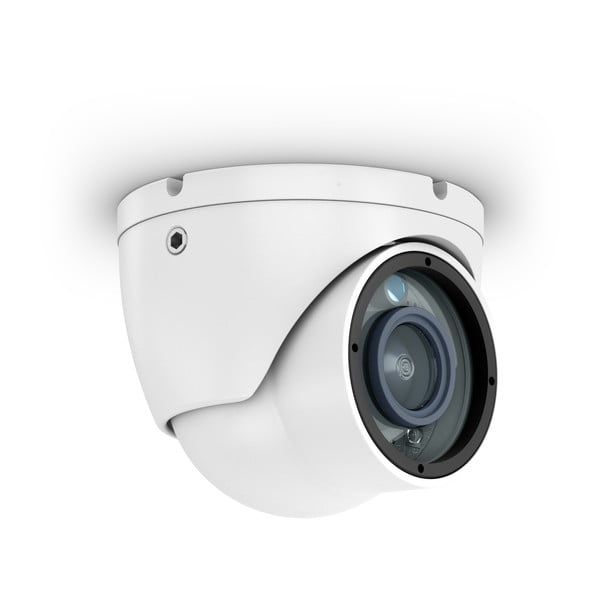

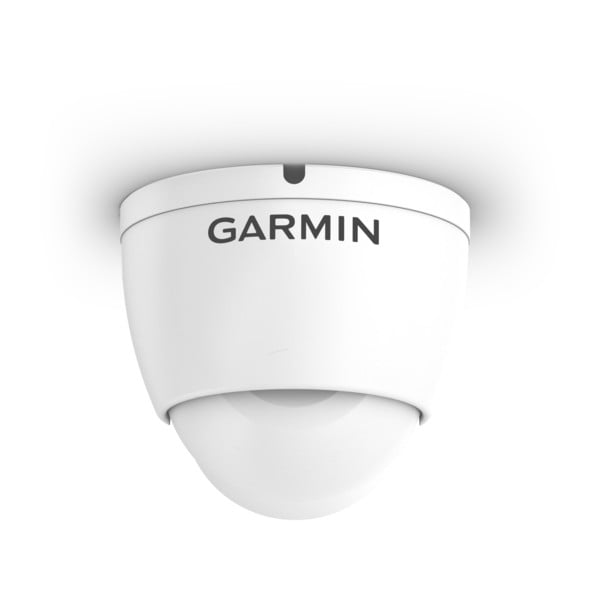

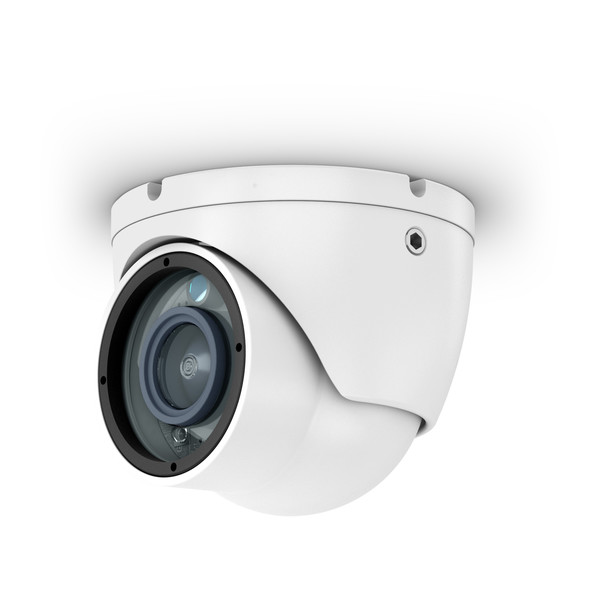

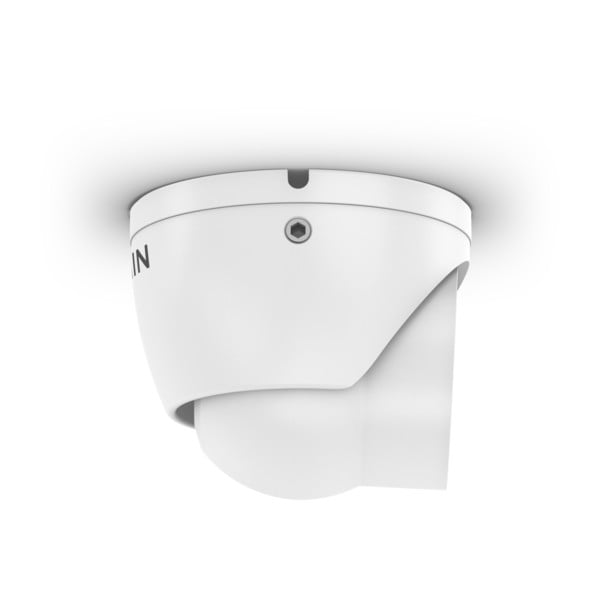

GC™ 12 Marine Camera

Part Number 010-02122-00

ONLINE STORE

Fitur
Spesifikasi
Isi Dalam Kotak
Perbarui
Aksesori
Cocok untuk mesin

See More Aboard Your Vessel

Provides an extra set of eyes aboard your vessel to monitor areas above or below decks
Analog camera delivers excellent quality images, even in low light; perfect for engine rooms
Capable of broadcasting images on 1 chartplotter or across multiple networked compatible chartplotters
Reverse-image setting on compatible chartplotters helps when backing out of tight locations such as a crowded marina
Rotate images on compatible chartplotters 90/180/270 degrees so you can mount in any orientation

See more of what’s happening on or around your boat with our GC 12 marine camera. With GC 12 on your vessel, you’ll be able to monitor areas inside and outside while you're on the water or while you’re docked.

Keep an Eye on Everything

This small and discreet analog camera delivers excellent quality images that can be viewed via onboard TVs, video monitors or compatible chartplotters that support video input. Use it in multiple areas above or below decks, and view on 1 chartplotter or across multiple networked compatible chartplotters.

Place Nearly Anywhere

GC 12 features a convenient reverse-image setting to help you back out of tight locations such as a crowded marina. It even provides clear images in low light, making it perfect for monitoring your dark engine room. Easy to install, its small size and rugged weatherproof case allow for flexible placement.

Terkait

Image sensor device: 1/3” Sony 960H Double Scan Super HAD CCD II
Resolution: PAL: 976(H) x 582(V)
Scanning system: PAL: 625 Lines 2:1 Interlaced
Sync system: Internal
Low light vision range: Up to 10 meters
Viewing angle: D×H×V(°) = 95.0°x69.0°x52.0°
Video output: 1.0Vp-p Composite 75 Ω composite
S/N ratio: More than 52dB (AGC Off)
Operating temperature: From -10℃ to +50℃
Power consumption: 12VDC/80mA (IR Off)/170mA (IR On)
Weight: 205 g
Dimensions: 50.5 mm (diameter) x 44.3 mm (H)
Cable length:
Compass safe distance: 6 1/8 in. (155 mm)
Water rating: IPX7
