6-foot Open Array Radar with 6 kW of Power

6 kW high-definition radar with 6-foot open array
High sensitivity with 1.1 degree horizontal beamwidth for consistent target positions, excellent target separation and reliable operation
Dual range radar with dual radar support
No complex user settings; easy to install and start using
Quiet rotation and reliable operation

The GMR 626 xHD2 6 kW high-definition 6-foot open-array radar is designed for serious seafarers of larger yachts and sport fishing boats over 50-feet who want the advantages of the tight beamwidth of a 6-foot antenna. This is the first step up from our 4-foot open array radars. The 6-foot antenna focuses the beamwidth down to just 1.1 degree and that increases resolution for a more detailed radar image. Its high-sensitivity and consistent target positioning makes it perfect for cruising and fishing near shore, offshore, overnight and in foggy, limited or no visibility, conditions.

High-power xHD2 Radar with Narrow 1.1 Degree Beam

This high-definition 6 kW radar has the power to deliver excellent range, up to 72 nautical miles, even in fog or rain. Its narrow 1.1 degree horizontal beamwidth picks out targets well off in the distance. It paints a clear image of the shoreline, other vessels, and impending weather on your Garmin chartplotter. You get consistent target positions, excellent target separation and reliable operation. Its 8-bit true color imagery also helps you discriminate large targets from small ones and enhances target separation. Rotation speeds of 24 and 48 rpm with a max range scale of 72 nautical miles.

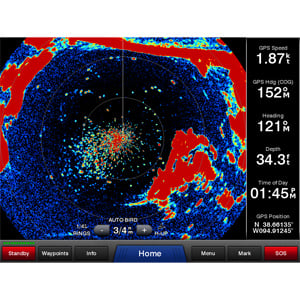

Bird Mode

Fishermen know, when you find birds at the water’s surface, you’ll also find fish.

To further improve your fishing experience, use Bird Mode, which helps to locate birds at the water’s surface where baitfish are also likely to be found.

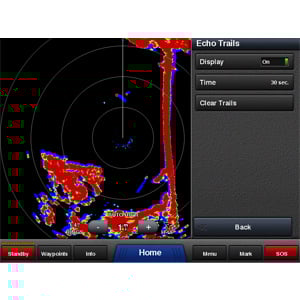

Echo Trails

A historical “trail” is left on the screen to help you quickly and easily identify moving targets and potential collision threats.

Dual Range

Single radar antenna is capable of providing split screen images on your chartplotter for both close and long range.

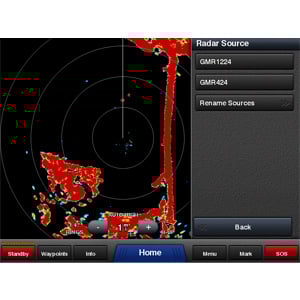

Dual Radar Support

Provides redundancy and the ability for each display unit on the boat to select data from one of two different radar sources.

Dynamic Auto Gain

Dynamic Auto Gain automatically adjusts gain levels to optimum settings for harbors, near shore, and offshore in open waters.

Dynamic Sea Filter

Dynamic Sea Filter automatically adjusts gain to calm, medium and rough sea conditions.

Radar Overlay

Overlays the radar image on the chartplotter’s map page.

MARPA Target Tracking

Mini-automatic radar plotting aid (MARPA) tracks up to 10 selected targets, helping you keep track of other vessels and avoid collisions.

Guard Zone

Set the safety zone and receive an alarm when an object enters the zone.

VRM and EBL

Variable range markers (VRM) and electronic bearing lines (EBL) allow rapid measurements of distance and bearing to vessels and land.

The Power of Simple…Radar

This radar is designed to be easy to install and use. There are no complex user settings to fuss around with, just install it and start using. You can rely on the GMR xHD2 to provide reliable, optimum performance in all conditions.

Terkait

Bird Mode Bird Mode has the sensitivity to determine targets of birds feeding in the distance.
Echo Trails Echo Trails leaves a historical “trail” on the screen to help quickly and easily identify moving targets and collision threats.
Dual Range Single radar antenna is capable of providing split screen images on your chartplotter for both close and long range.
Dual Radar Support Provides redundancy and the ability for each display unit on the boat to select data from one of two different radar sources.
Dynamic Auto Gain Dynamic Auto Gain automatically adjusts gain levels to optimum settings for harbors, near shore, and offshore in open waters.
Dynamic Sea Filter Dynamic Sea Filter automatically adjusts gain to calm, medium and rough sea conditions.
Radar Overlay Overlays the radar image on the chartplotter’s map page.
MARPA Target Tracking Mini-automatic radar plotting aid (MARPA) tracks up to 10 selected targets, helping you keep track of other vessels and avoid collisions.

Physical & Performance
Physical dimensions	6' array: 76.25" x 5" x 6.75" (193.6 x 12.7 x 17.1 cm) Pedestal: 20.5" x 12.75" x 12.5" (52 x 32.4 x 31.8 cm)
Weight	array: 16.9 lb (7.7 kg) pedestal: 47.1 lb (21.4 kg)
Water rating	IPX6
Rotation speed (RPM)	24 and 48 rpm
Transmit power	6 kW
Power input	10-32 V
Beam width	1.1¡Æ horizontal, 23¡Æ vertical
Maximum range	72 nm
Minimum range	20 meters
Radar type	Open-Array
Power consumption	65 W typical
Antenna length	72" (182.88 cm)

Features & Benefits
High definition (outstanding target separation with less screen clutter)	Yes
MARPA target tracking (collision avoidance)	Yes (Requires Heading Sensor, Sold Separately)
Guard zone alarm	Yes
Additional	Bird Mode: Yes Dual Active Radar: Yes Echo Trails: Yes Programmable Antenna Parking Position: Yes
Color	8 bit
Radar overlay support	Yes
Dual range support	Yes
Auto Gain	Yes
Sea Filter	Yes
Timed Transmit	Yes
No Transmit Zone	Yes

GMR 626 xHD2
Mounting hardware kit and template
Power cable (15 meters)
Network cable (15 meters)
Cable grommet
Documentation
