GPSMAP® 2008

Part Number 010-00740-00

ONLINE STORE

Fitur
Fungsi
Spesifikasi
Isi Dalam Kotak
Perbarui
Aksesori
Cocok untuk mesin

Preloaded with Bahasa Indonesia

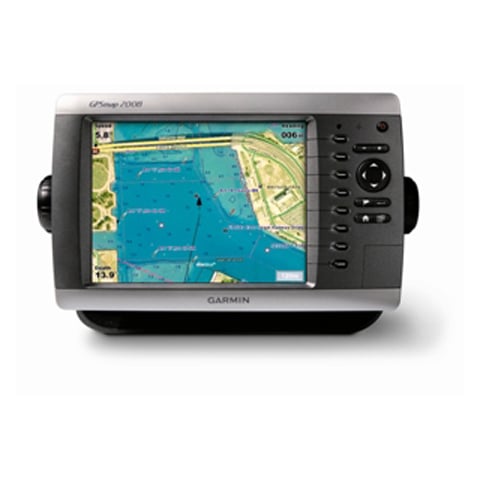

GPSMAP 2008 chartplotter has sunlight readable and high resolution quality on an 8” SVGA (800 x 600 pixels) display, easy to flush-mounts or bail-mounts in your boat. Features designed specifically for professional fishermen at more affordable cost to larger display chartplotters. The 2008 also sports a built-in, worldwide basemap and simple, straightforward buttons and menus. You can add the optional BlueChart® g2 SD card for more enhanced map features. Except with English user interface (UI), the 2008 is the first Garmin chartplotter equipped with Asian language pack, including Traditional Chinese, Simplified Chinese, Indonesian Bahasa, Thai, and Myanmar.

Navigate with Ease

With just a few buttons and a simple, intuitive interface, the GPSMAP 2008 makes navigating virtually effortless. The GPSMAP 2008 has an SD™ card slot so you can add additional detailed maps worldwide without connecting to a computer.

Add Sonar

Where applicable, the GPSMAP 2008 can connect with a powerful sounder (GSD21 or GSD22) and dual frequency transducer that clearly paints depth contours, fish targets and structure whether you’re fishing in freshwater or off the coast. Capable of connecting to Garmin NMEA 0183 Intelliducer for various depth fathoming sensors. The GPSMAP 2008 is also CANet™ compatible, so you can share sounder data with another chartplotter on your boat.

Terkait

Physical & Performance:

Unit dimensions, WxHxD: 11.2" x 7.0" x 4.6" (28.5 x 17.8 x 11.7 cm)

Display size, WxH: 6.9" x 5.2", 8.4" diagonal (17.5 x 13.2 cm, 21.3 cm diagonal)

Display resolution, WxH: 800 x 600 pixel

Display type: SVGA display

Weight: 1.4 kg

Battery: none

Battery life: none

Waterproof: yes (IPX7)

High-sensitivity receiver: no

NMEA input/output: NMEA 0183

Maps & Memory:

Basemap: yes

Preloaded maps: no

Ability to add maps: yes

Built-in memory: N/A

Accepts data cards: yes (g2 SD)

Waypoints/favorites/locations: 5,000

Routes: 50

Track log: 35,000 points; 30 saved tracks

Features:

Garmin radar compatible: no

Garmin sonar compatible: yes

Garmin Marine Network™ compatible: no

Touchscreen: no

Supports AIS (tracks target ships' position): yes

Supports DSC (displays position data from DSC capable VHF radio): yes

Audible alarms: yes

Tide tables: yes

Hunt/fish calendar: yes

Sun and moon information: yes

3-D map view: no

Auto Guidance: no

XM WX Weather & Radio for U.S. & Canada compatible: no

Automatic routing (turn by turn routing on roads): no

Voice prompts (e.g. "Turn right in 500 ft."): no

Speaks street names (e.g. "Turn right ON ELM STREET in 500 ft."): no

Headphone jack/audio line-out: no

Audio/video input/output: no

Portable: no

Automotive/motorcycle-friendly: no

GPSMAP 2008
Bail mount
Power cable
NMEA 0183 cable
Protective front cover
Owner's manual

Unduh Dokumen

Perjanjian Lisensi Perangkat Lunak

Dengan mengunduh, menginstal, atau menggunakan perangkat lunak ini, Anda setuju untuk terikat dengan syarat dan kondisi dari perjanjian lisensi berikut. Harap membaca perjanjian ini dengan seksama.

Korporasi Garmin ("Garmin") memberikan Anda lisensi terbatas, non-eksklusif untuk menggunakan pembaruan perangkat lunak (“Perangkat Lunak”) dalam bentuk biner dalam operasi normal dari produk Garmin yang berlaku. Judul, hak kepemilikan, dan hak kekayaan intelektual dalam dan pada Perangkat Lunak tetap di Garmin. Lisensi ini bersifat pribadi untuk Anda dan Anda dapat membuat salinan dari perangkat lunak hanya untuk penggunaan pribadi Anda. Anda setuju bahwa perjanjian lisensi tidak perlu ditandatangani untuk itu akan berlaku.

Perangkat lunak ini diberikan pada “sebagaimana adanya” dasar tanpa jaminan dalam bentuk apapun - baik tersurat maupun tersirat - termasuk, tidak terbatas pada, jaminan tersirat tentang diperjualbelikan atau kesesuaian untuk tujuan tertentu. Garmin tidak menjamin kinerja perangkat lunak atau perangkat lunak yang akan memenuhi kebutuhan Anda atau beroperasi bebas dari kesalahan.

Anda mengakui bahwa perangkat lunak ini adalah milik Garmin dan dilindungi dibawah undang-undang Amerika Serikat hak cipta dan perjanjian hak cipta internasional. Anda juga tahu bahwa struktur, organisasi, dan kode dari perangkat lunak adalah rahasia dagang yang bernilai dari Garmin dan perangkat lunak dalam bentuk kode sumber tetap merupakan rahasia berharga Garmin. Anda setuju untuk tidak menguraikan , membongkar, memodifikasi, melakukan rakit ulang, atau mengurangi untuk manusia yang dapat dibaca Perangkat Lunak atau setiap bagian daripadanya atau menciptakan karya turunan berdasarkan Perangkat Lunak.

Anda setuju untuk tidak ekspor atau ekspor-ulang Perangkat Lunak ke Negara mana saja yang melanggar hukum kontrol ekspor Amerika Serikat.

2011/07/27

GPSMAP2008 Unit Software v3.50

Unduh(5 MB)

GPSMAP2008 Unit Software v3.50

On the Water Software Update

Change History

Added distance measure function.
Improved sonar drawing performance.
Displayed current position and vessel position field when the cursor moves on radar page.
Enlarged AIS vessel number up to 300.
Enabled fishing chart.
Supported AIS group function.
Supported HDT NMEA sentence.
Made all waypoints listed under "Where to".
Displayed current position on sonar page.

Installation Instructions

Click on 'Download' and choose to save the file to your computer.
Choose a location where you can easily find the file, such as the 'My Documents' folder or 'C:\'.
Once the download is complete, go to the location where you saved the file.
Double-click on the downloaded file. This will automatically extract the files to C:\Garmin and run a program to transfer the software update to an SD card.
Power on the device.
Insert the card into the card slot of your device. Select 'Update Software' in the window that automatically displays.

System Requirements: * IBM-compatible PC running Windows XP or later operating system and an available SD card reader.

NOTE：

This software should only be uploaded to the unit for which it is intended. If this software is uploaded to a GPS unit other than the product it is designed for, it will render the unit inoperative. If the software upload fails, and subsequent upload attempts prove unsuccessful, the unit may need to be returned to Garmin for service. Call Garmin at +886.2.26429199 ext2 or email Garmin. You may also contact Garmin authorised dealer for product support.
Before proceeding, please back up your waypoints and route data.
