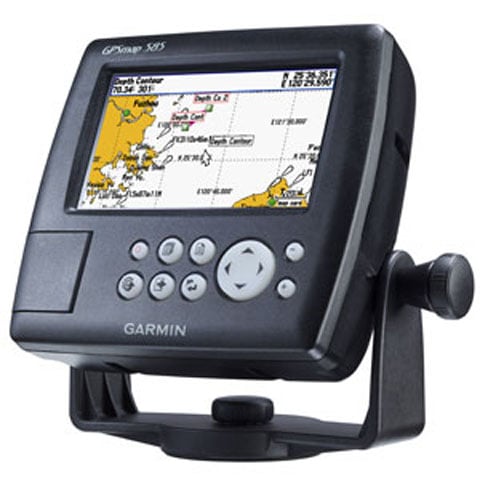

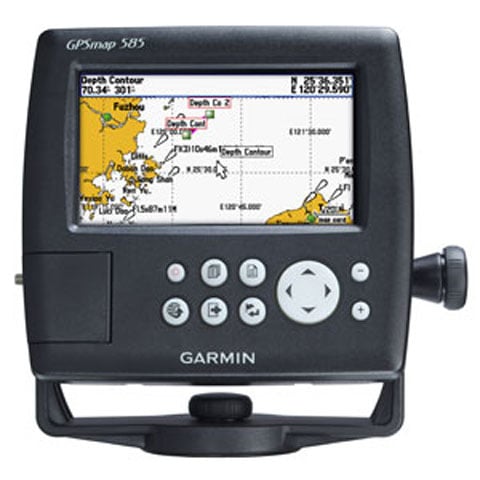

The GPSMAP 585 is a full-function chart plotter that features an ultra-bright 5” WQVGA color display along with an improved feature of high-speed map drawing and panning. It’s ready to go with an easy-to-use interface and a built-in worldwide basemap. The 585 is unique Garmin chart plotters that not only equip with English language but also with Asian languages including Simplified Chinese and Bahasa Indonesia. GPSMAP 585 is designed specifically for professional fishermen and comes with the advantages of Garmin’s renowned GPS168/178C chart plotters. What’s more, you can now fish with a high quality chart plotter at more affordable cost.

Explore the Seas

The GPSMAP 585 comes standard with a built-in high-sensitivity GPS module for superior satellite tracking and quicker acquisition times. And with a SD card slot, it’s easy to add additional maps without connecting to a computer.

Add Sonar

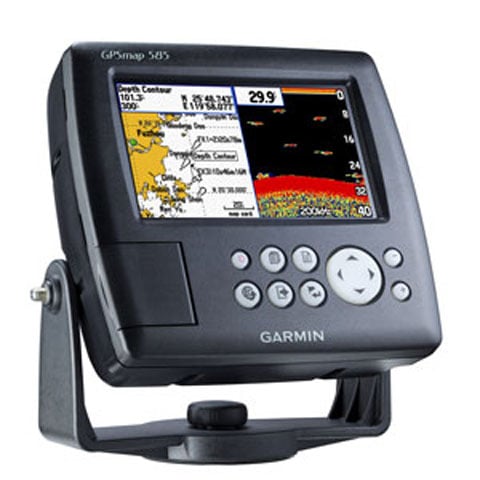

Where applicable, the sounder version, GPSMAP 585, comes with optional transducer that can clearly illustrate depth contours, fish targets and structures. Whether you’re fishing in freshwater or off the coast, you can always find right Garmin transducers of various kinds to suit your needs. The GPSMAP 585 is also NMEA 0183 compliant for connectivity with sensors, instruments and future marine offerings.

Terkait

Unduh Manual

Physical & Performance:
Unit dimensions, WxHxD:	5.9" x 6.4" x 2.9" (15.0 x 16.3 x 7.4 cm)
Display size, WxH:	5”, 120.7x75.8mm
Display resolution, WxH:	480x272 pixels
Display type:	WQVGA
Weight:	390g
Waterproof:	yes (IPX7)

Maps & Memory:
Basemap:	yes
Preloaded maps:	no
Ability to add maps:	yes
Accepts data cards:	SD card slot
Waypoints/favorites/locations:	6000
Routes:	150 tracks/250 points

Features:
CANet® compatible:	no
Supports AIS (tracks target ships' position):	yes
Supports DSC (displays position data from DSC capable VHF radio):	yes
Audible alarms:	yes
Tide tables:	yes
Sun and moon information:	yes
3-D map view:	no
Dual-frequency sonar capable:	yes
Dual-beam sonar capable :	no
Split-screen zoom:	yes
Split-screen sonar/gps:	yes
Ultrascroll™ (displays fish targets at higher boat speeds):	yes
See-thru® technology (exposes fish hidden in cover):	yes
Fish Symbol ID (helps identify fish targets):	yes
AutoGain Technology (minimizes clutter, maximizes targets):	yes
Whiteline (indicates hard or soft bottom):	yes
Adjustable depth line (measures depth of underwater objects):	yes
A-scope (real time display of fish passing through transducer beam):	yes
Bottom lock (shows return from the bottom up):	yes
Water temperature log and graph:	yes
Water temperature sensor included:	yes (need to equipt with correct tranducer)

Sonar:
Frequency:	50/200 kHz
Transmit power:	500W(RMS), 4,000W(peak to peak)
Voltage range:	10-36 VDC
Maximum depth*:	1,500ft
Cone angle:	20 degrees
*Depth capacity is dependent on water salinity, bottom type, and other water conditions.

GPSMAP 585
Bail mount
Power cable
Protective front cover
Owner's manual

Optional accessories

Mounts

Flush Mount Kit
010-10447-05
$ 26.99 USD

Marine Swivel Mounting Bracket (Replacement)
010-10921-00
$ 29.00 USD

Cables

Chartplotter Power/Data Cable
010-10918-00
$ 23.00 USD

Cases and Covers

Protective Cover (replacement)
010-10912-00
$ 10.00 USD

Antennas

GA™ 30 GPS Antenna
010-00872-00
$ 69.99 USD

Software

Chartplotter Update on SD™ card
010-00427-05
$ 29.99 USD

Communications

VHF 300 AIS
010-00757-00
Temporarily out of stock

VHF 300
010-00756-00
Temporarily out of stock

VHF 200
010-00755-00
Temporarily out of stock

VHF 100
010-00754-00
Temporarily out of stock

AIS™ 600
010-00865-00
Temporarily out of stock

AIS™ 300
010-00892-00
Temporarily out of stock

Unduh Dokumen

Perjanjian Lisensi Perangkat Lunak

Dengan mengunduh, menginstal, atau menggunakan perangkat lunak ini, Anda setuju untuk terikat dengan syarat dan kondisi dari perjanjian lisensi berikut. Harap membaca perjanjian ini dengan seksama.

Korporasi Garmin ("Garmin") memberikan Anda lisensi terbatas, non-eksklusif untuk menggunakan pembaruan perangkat lunak (“Perangkat Lunak”) dalam bentuk biner dalam operasi normal dari produk Garmin yang berlaku. Judul, hak kepemilikan, dan hak kekayaan intelektual dalam dan pada Perangkat Lunak tetap di Garmin. Lisensi ini bersifat pribadi untuk Anda dan Anda dapat membuat salinan dari perangkat lunak hanya untuk penggunaan pribadi Anda. Anda setuju bahwa perjanjian lisensi tidak perlu ditandatangani untuk itu akan berlaku.

Perangkat lunak ini diberikan pada “sebagaimana adanya” dasar tanpa jaminan dalam bentuk apapun - baik tersurat maupun tersirat - termasuk, tidak terbatas pada, jaminan tersirat tentang diperjualbelikan atau kesesuaian untuk tujuan tertentu. Garmin tidak menjamin kinerja perangkat lunak atau perangkat lunak yang akan memenuhi kebutuhan Anda atau beroperasi bebas dari kesalahan.

Anda mengakui bahwa perangkat lunak ini adalah milik Garmin dan dilindungi dibawah undang-undang Amerika Serikat hak cipta dan perjanjian hak cipta internasional. Anda juga tahu bahwa struktur, organisasi, dan kode dari perangkat lunak adalah rahasia dagang yang bernilai dari Garmin dan perangkat lunak dalam bentuk kode sumber tetap merupakan rahasia berharga Garmin. Anda setuju untuk tidak menguraikan , membongkar, memodifikasi, melakukan rakit ulang, atau mengurangi untuk manusia yang dapat dibaca Perangkat Lunak atau setiap bagian daripadanya atau menciptakan karya turunan berdasarkan Perangkat Lunak.

Anda setuju untuk tidak ekspor atau ekspor-ulang Perangkat Lunak ke Negara mana saja yang melanggar hukum kontrol ekspor Amerika Serikat.

2019/03/21

GPSMAP 580/585 v3.80

Unduh(6.6 MB)

GPSMAP 580/585 v3.80

Release Note:

Changes made from version 3.70 to 3.80:

IDisable the update of scanned position for cursor
Fix SD logging path in log-consumer module
Enable QZSS support

Installation Instructions

A maximum size 32GB SD card, formatted to FAT32, with 2GB of free space is needed for this update.
Please back up your user data before applying the update.
Click on 'Download' and choose to save the file to your computer.
Choose a location where you can easily find the file, such as the 'My Documents' folder or 'C:\'.
Once the download is complete, go to the location where you saved the file.
Double-click on the downloaded file. This will automatically extract the files to C:\Garmin and run a program to transfer the software update to an SD card.
Power on the device and make sure all attached network devices are powered on as well.
Insert the card into the card slot of your primary device. Select 'Update Software' in the window that automatically displays. If you do not have a primary device with a card slot, please see your dealer.
After the update completes, all Garmin Marine Network devices and NMEA 2000 sensors will have the latest software. This ensures all of the devices will be able to communicate with each other.

Note: If you have additional chartplotters connected to NMEA 2000 and not the Garmin Marine Network, you will have to independently update each chartplotter. After the update of the Garmin Marine Network completes, insert the update card into each NMEA 2000 chartplotter.

System requirements：

IBM-compatible PC running Windows 2000 or later operating system and an available SD card reader.
