Antarmuka data MFD untuk JL Audio MediaMaster

Part Number 010-03135-00

ONLINE STORE

Fitur
Spesifikasi
Isi Dalam Kotak
Perbarui
Aksesori

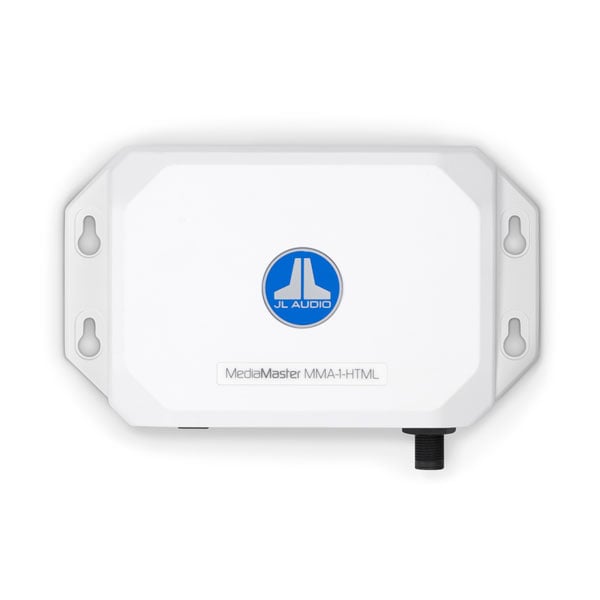

The JL Audio MFD Data Interface for MediaMaster source units is interface engineered to generate MediaMaster source unit themed UI navigation and controls directly onto your vessel's compatible Multi-function Display (MFD). Exclusively designed for use with compatible MediaMaster source units, the MFD Data Interface allows you to pilot your boat and control your MediaMaster source unit seamlessly, via your helm's MFD display.

Outfitted with a NMEA 2000 network Micro-C connector (LEN 1), the MFD Data Interface interacts with a vessel's NMEA 2000 network using applicable cables and connectors for the NMEA 2000 network (not included). The MFD Data Interface automatically recognizes the host MediaMaster source unit and will then project its familiar screen info and navigation controls onto your MFD's display, resulting in a true MediaMaster source unit user experience.

Terkait

Umum
DIMENSI FISIK (TINGGI)	1.73" (44 mm)
DIMENSI FISIK (LEBAR)	6.77" (172 mm)
DIMENSI FISIK (KEDALAMAN)	3.98" (101 mm)
RENTANG SUHU PENGOPERASIAN	-4° F to +149° F (-20° C to +65° C)
TARIKAN DAYA (MAKS)	150 mA
GARANSI	3 years
Koneksi jaringan
NMEA 2000® LEN	1 (50 mA)
Fitur Kelistrikan
INPUT DAYA	10-15.9 VDC
Fitur Stereo
MULTI-LANGUAGE INTERFACE	English/French/German/Italian/Spanish
PEMBARUAN PERANGKAT LUNAK	USB
Sumber
SUPPORTED SOURCES	Derived from host source unit
FORMAT AUDIO YANG DIDUKUNG (USB)	Derived from host source unit

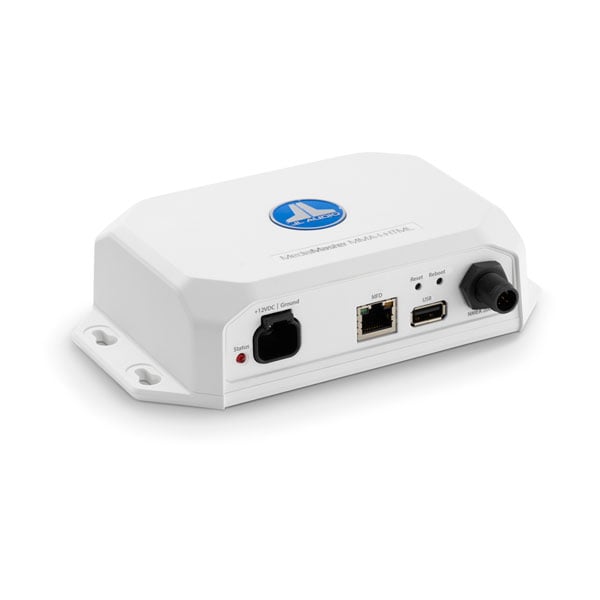

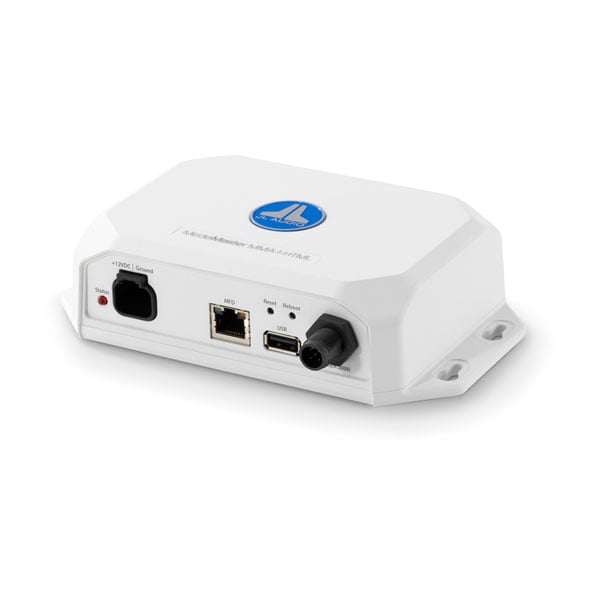

Koneksi
ETHERNET PORTS	1
PORT NMEA 2000	1 (Micro-C connector)
PORT USB 2.0	1 (Software update only)

Modul antarmuka data MFD jaringan NMEA 2000
Wiring harness (1A fuse)
4 sekrup stainless steel
